2013-Early 2015 Cadillac ATS | XTS | ELR | Smart Key 5-Button Trunk | Remote Start | PN: 22856930 | NBG009768T | 315 MHz | Aftermarket
2013-Early 2015 Cadillac ATS | XTS | ELR | Smart Key 5-Button Trunk | Remote Start | PN: 22856930 | NBG009768T | 315 MHz | Aftermarket is backordered and will ship as soon as it is back in stock.
Pickup available at Stallion Keys
Usually ready in 1 hour
Before you buy
Before you buy
Delivery & Shipping
Delivery & Shipping
Fast shipping from our Pennsylvania facility. Delivery options and estimated transit times are available at checkout. Tracking information is provided once your order ships.
2013-Early 2015 Cadillac ATS | XTS | ELR | Smart Key 5-Button Trunk...
2013-Early 2015 Cadillac ATS | XTS | ELR | Smart Key 5-Button Trunk | Remote Start | PN: 22856930 | NBG009768T | 315 MHz | Aftermarket is backordered and will ship as soon as it is back in stock.
| Manufacturer | Stallion Keys |
| Product Type | Smart Key |
| Vehicle Make | Cadillac |
| Condition | Brand New |
| Number of Buttons | 5-Button - Lock, Unlock, Panic, Trunk, Engine Start |
| OEM Part | 22856930 |
| FCC ID | NBG009768T |
| IC | 2694A-009768T |
| Frequency | 315 MHz |
| Chip ID | Philips ID 46 |
| Battery Part | CR2032 |
| Emergency Key | Included |
| Emergency Key SKU | EMK-72 |
| Emergency Key Keyway | HU100 |
Make Model Year Cadillac ATS 2013 - 2014 Cadillac ELR 2014 Cadillac XTS 2013 - 2015 First half of 2015 only, check PN and FCC ID vs VIN#
2013-Early 2015 Cadillac ATS | XTS | ELR | Smart Key 5-Button Trunk | Remote Start | PN 22856930

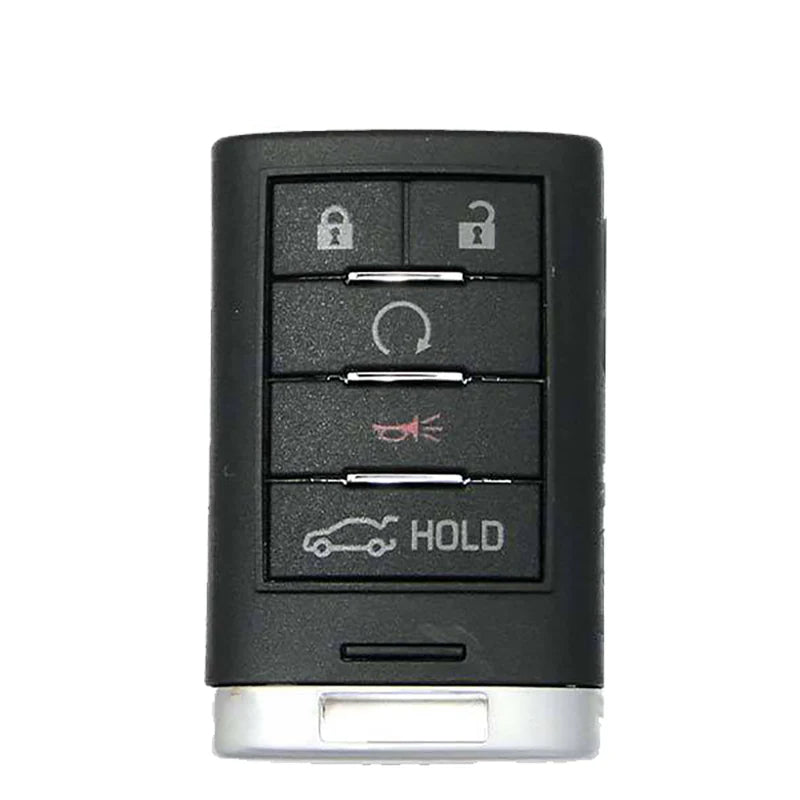

This is an aftermarket smart key, part number 22856930, FCC ID NBG009768T. It fits the Cadillac ATS 2013–2014, Cadillac ELR 2014 and Cadillac XTS 2013–2015 First half of 2015 only, check PN and FCC ID vs VIN#. It has 5 buttons (Lock, Unlock, Panic, Trunk, Engine Start).
Will it fit my car?
Check the back of your current key: if it shows part number 22856930 or FCC ID NBG009768T, this is the right smart key. The number of buttons has to match too. You can also pick your car in the Make / Model / Year search at the top of the page.
The emergency key is included, uncut.
Key details
315 MHz · Philips ID 46 chip · CR2032 battery.
Program it
- Programming: A new key has to be programmed to your vehicle: by a locksmith, by the dealer, or with a key programmer such as the Autel IM508S, Autel IM608 Pro II or Xhorse VVDI Key Tool Plus. Check your tool's vehicle list for your exact model and year first.
Questions
Will this work on a 2014 Cadillac ATS? Yes, it's listed for the Cadillac ATS 2013–2014 — check the part number or FCC ID on your key to be sure.
What battery does it use? CR2032.
